R.SD / R.SDE Direct Harvesting Range

The direct harvesting trailers in our R.SD and R.SDE range are designed for those with more challenging needs - namely those seeking to maintain the quality of the grapes from the vine all the way to the wine cellar. The variable-speed worm-type conveyor system ensures that the grapes take the smoothest possible path and remain unspoiled. They come in standard or lifting models, in steel or stainless steel.

Standard model

  • One-piece steel body with an Archimedes screw (diameter – 300 mm)
  • Hydraulic engine drive by dual action tractor
  • Standard door (lever-action opening)
  • Mechanical and hydraulic brakes
  • Lights, approved for road use - 25 km/h

Options available

  • Rotating drawbar
  • Drainage tank
  • Rear lever-controlled power unit, reverse switch and flow-rate control device
  • Hydraulic gear motor drive
  • Hydraulic door
  • Stainless steel model

Looking for a particular model?

Our catalogues are by no means exhaustive.
We can adapt to your precise needs to build a custom-sized model!

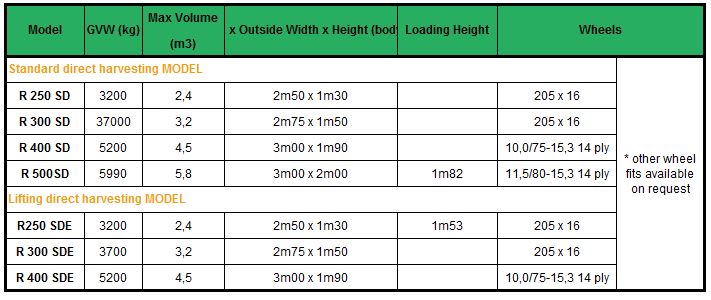

Click here to see our different models and product details, including technical specifications, dimensions, payloads and features...
See the technical chart Download the product information sheet

R.SD / R.SDE Direct Harvesting Range

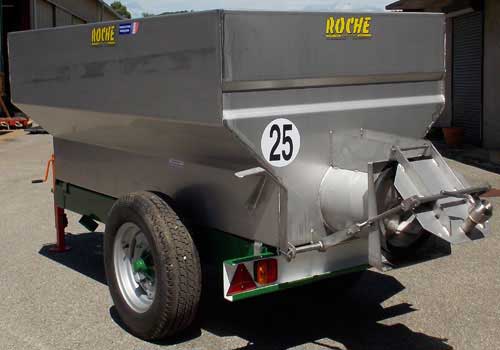

  • R 250 SDE

  • R 250 SDE

  • R 500 SDE
